Industry Standard Metal Door Sizes

All commercial hollow metal doors are built to a standard 1-3/4” thickness and offered in the industry’s most common widths and heights. For openings that require non-standard sizes, we offer custom cut-down and restyling services to meet your exact specifications. Please review our size chart before requesting a quote. If you have questions, our team is ready to help.

Specifications:

• Door Thickness: 1-3/4″ Standard
• Core Options: Mineral Core or Particleboard
• Sizes: Standard widths up to 4’0″, heights up to 8’0″ (Custom sizes available)
• Undercut: 3/4″ Standard

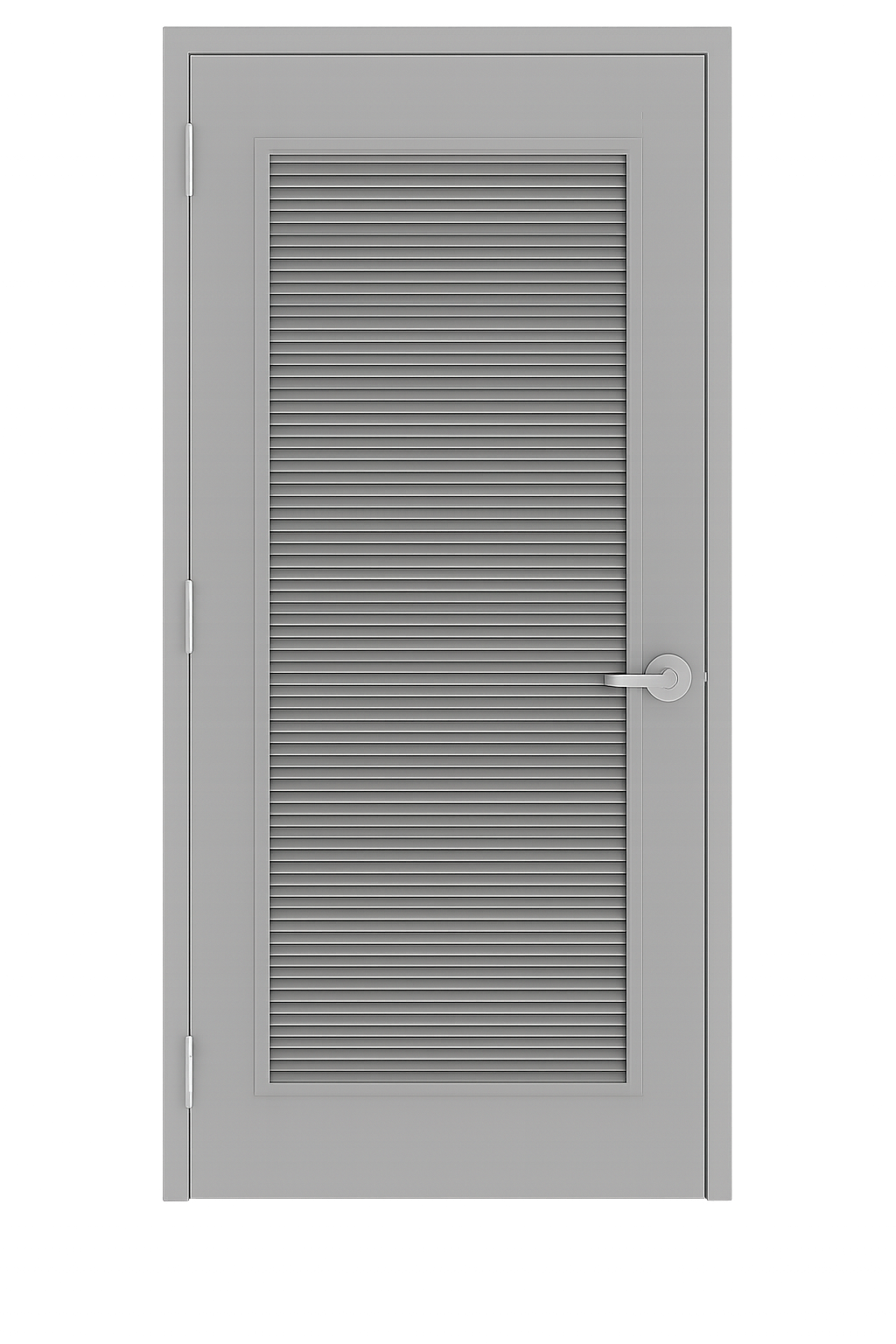

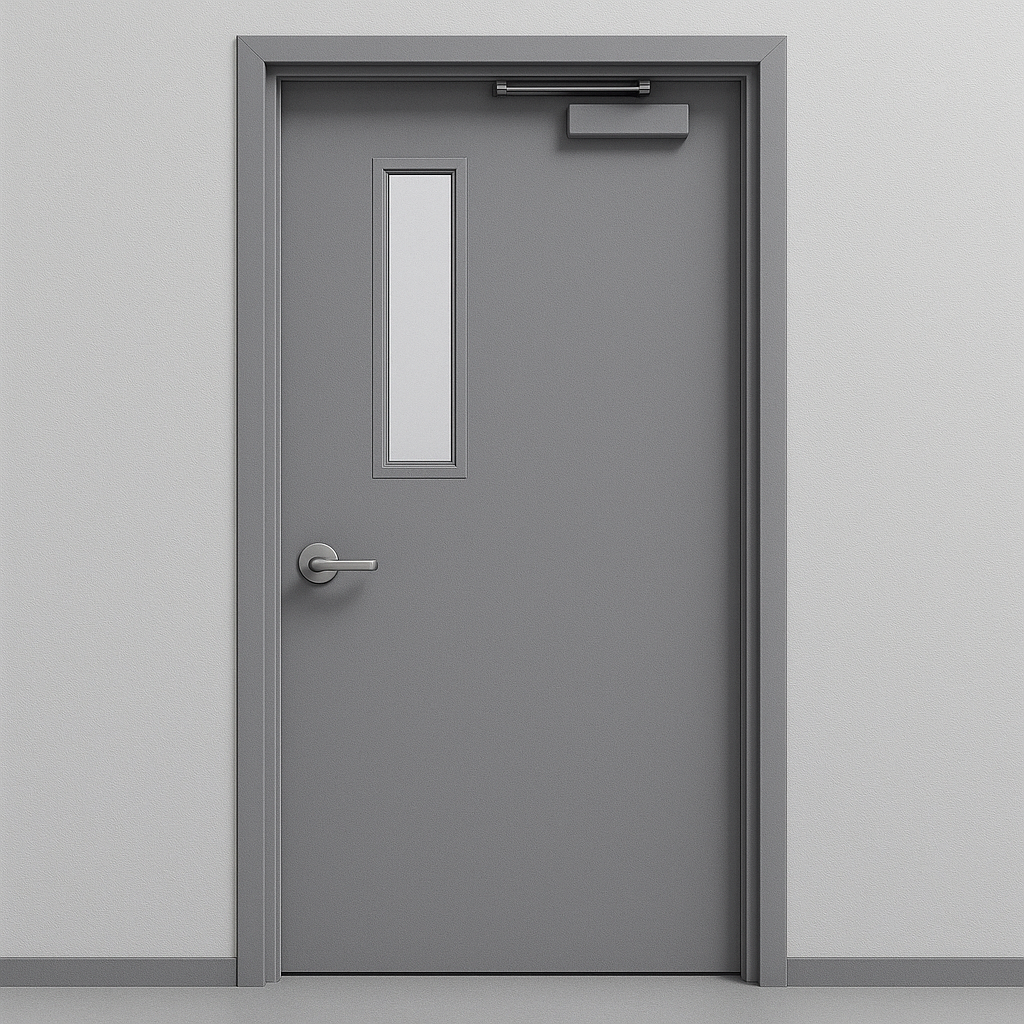

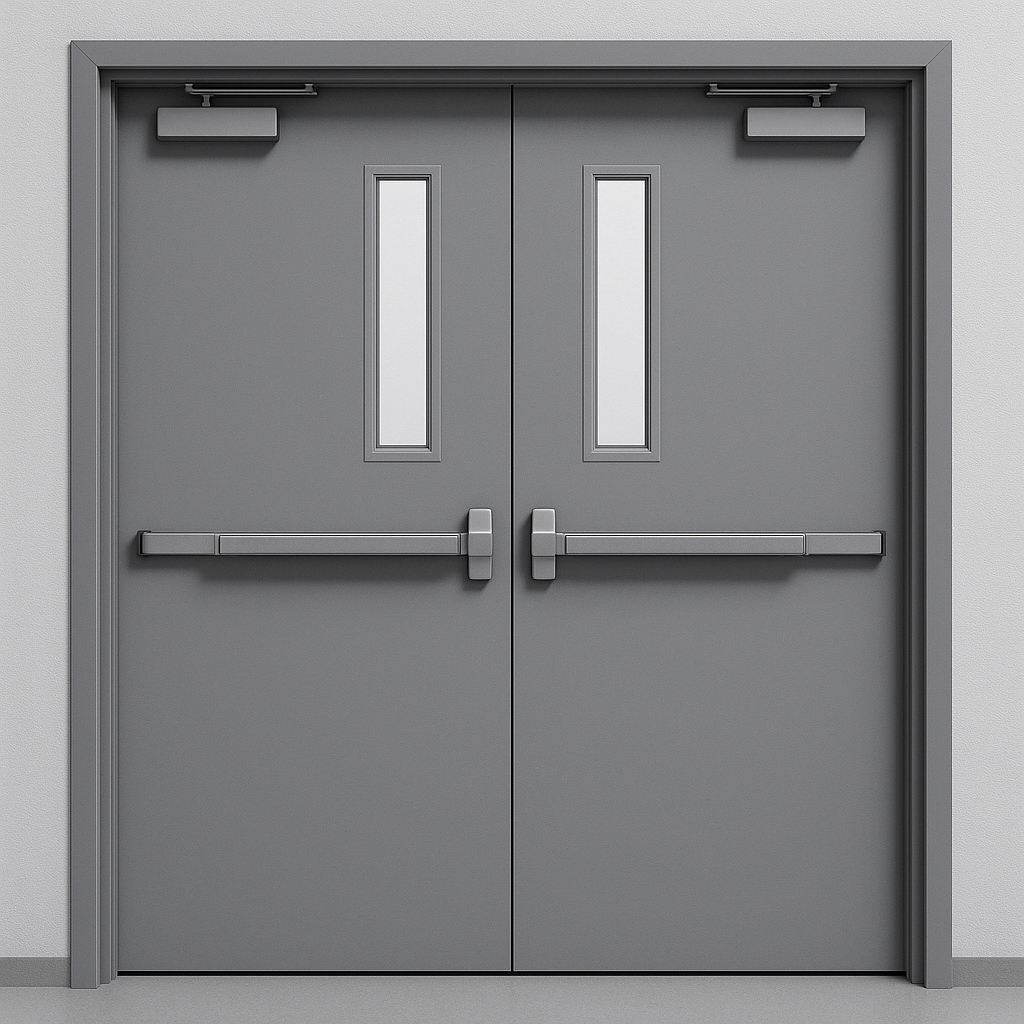

• Optional Preps: Exit Device Trim, Deadbolts, Lite & Louver Cutouts, Continuous Hinge Applications (for undersized width)
• Standard Preps: 161 (Cylindrical Lock), 86 Edge (Mortise Lock), Deadbolt, RPD (Blank Edge/Panic Reinforced)

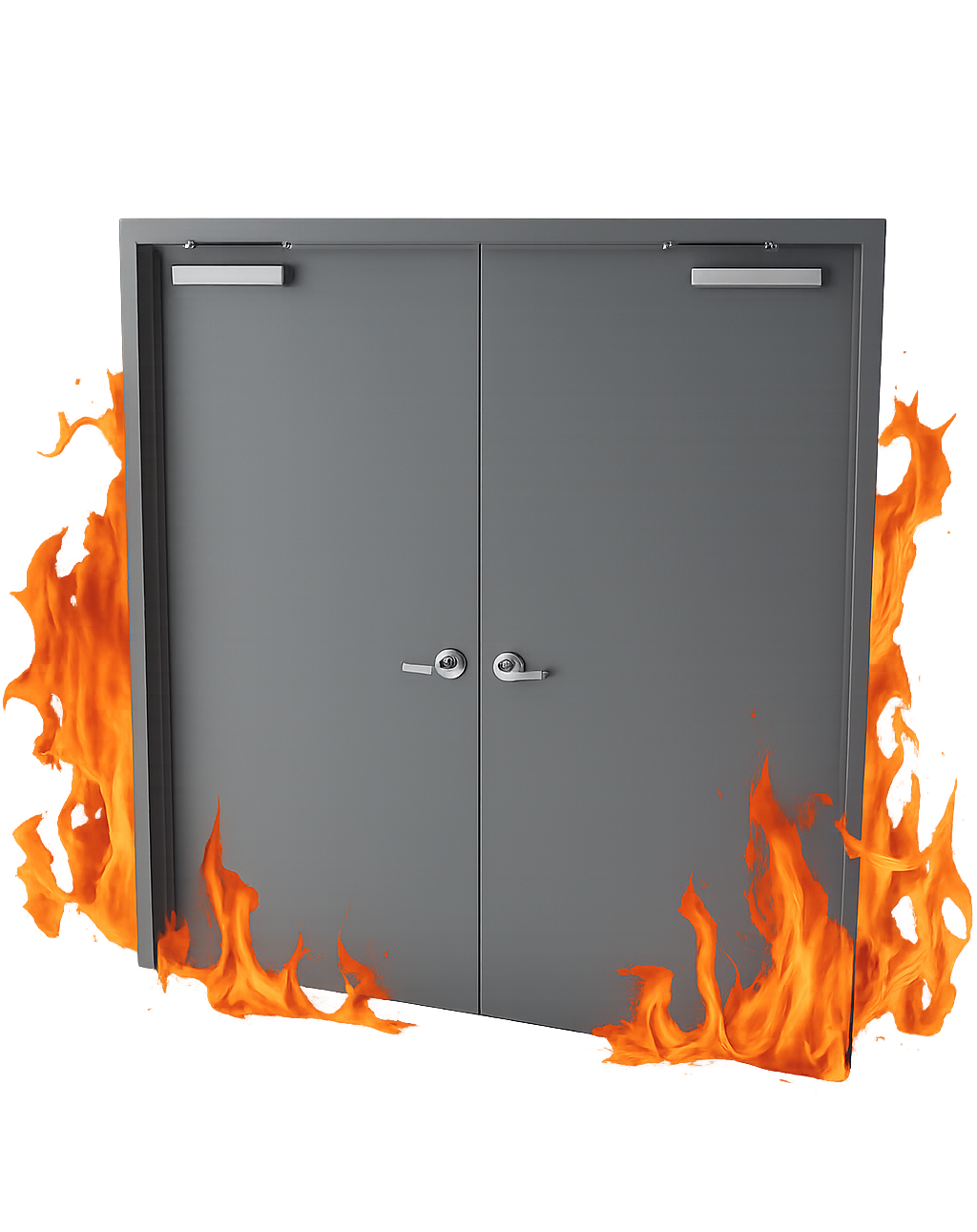

• Fire Ratings: 20, 45, 60, or 90-minute ratings available
• Compliance: Meets or exceeds ANSI A208.1 and CS236-66 standards
• Handing: Non-Handed Design with Reversible Hinge Plates
• Hinge/Lock Locations: Compatible with Steelcraft, Mesker, Ceco, Curries, Republic, Baron, DKS, Pioneer, Deansteel, or Custom Locations

Standard Sizes

Size & Fit Information

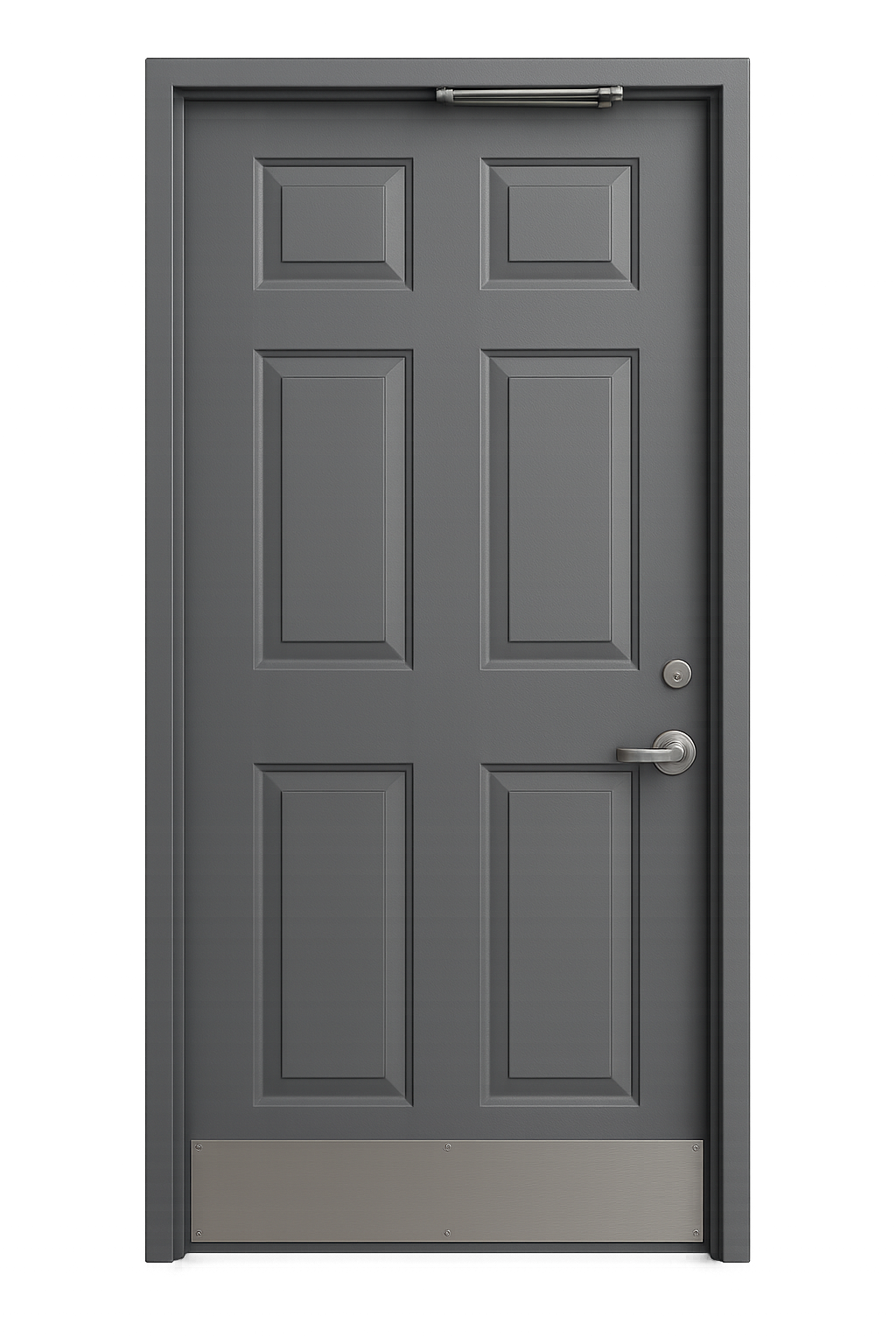

Any door size not shown in this chart is considered a custom size. Availability of standard sizes may vary by manufacturer, and not all door styles are offered in every standard size (for example, panel doors are typically limited to select sizes).

Actual door dimensions are slightly undersized from the nominal size to allow for proper clearance and undercut — typically 1/4″ less in width and 7/8″ less in height.
Example: A 3070 door (3’0″ x 7’0″) will have an actual size of 35-3/4″ x 83-1/8″.

All standard doors are manufactured at 1-3/4″ thickness unless otherwise specified.
